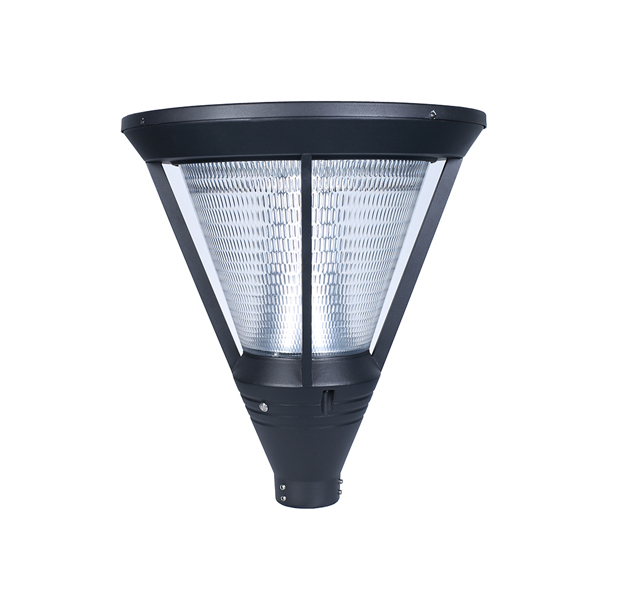

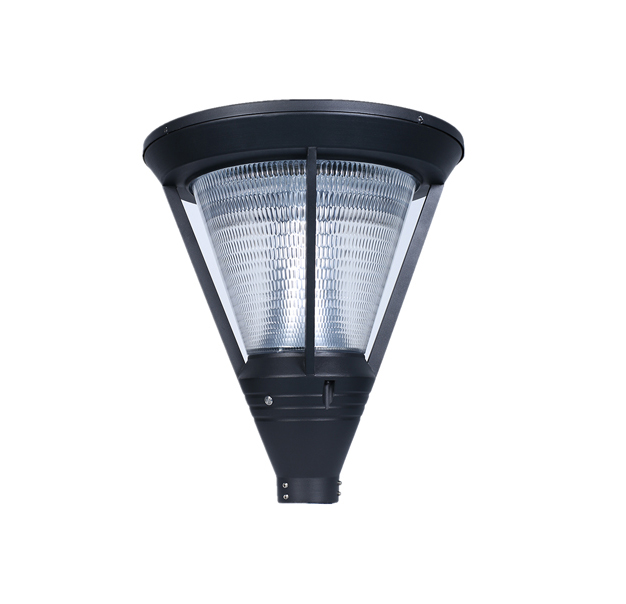

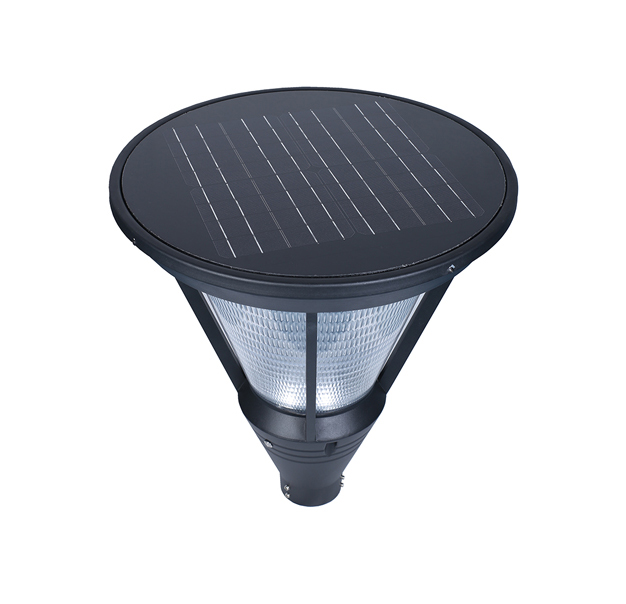

  • 12W LED Solar Garden Light PV-MS010
    • 12W LED Solar Garden Light PV-MS010
    • 12W LED Solar Garden Light PV-MS010
    • 12W LED Solar Garden Light PV-MS010
PRODUCT DESCRIPTION


Features




■ We use A grade monocrystalline solar cell to gain the max. solar energy. High efficiency solar panel can ensure fast charging.

 Branded LED chips(Epistar, Cree) privide quality lighting

 High quality deep cycle LiFePO4 lithium battery with over 2,000 lifecycles inside.

 Light case adopts die casting aluminum and polycarbonate, spray painting process, anti-corrosion & antioxidant.

 Smart controller built in, light control and time control. In energy saving mode, working hours ≥42h.

 In areas which are lack of sunshine, the AC & DC complementary mode is recommended.

 No trenching, no cabling, easy installation, labor cost saver.



Product specifications


Parameters
Solar Panel
18V/25W Monocrystalline Solar Panel,Grade A
LED12W,10*18mil Epistar Chip
Lifespan of LEDMore Than 50,000 Hours
Luminous Flux1320lm~1440m
Color Temperature3000K~7500K
Beam Angle120°
Battery12V, 12AH Li-ion lithium battery or 12.8V 10AH LiFePO4 Lithium Battery
Discharging Time18h (100% power), 42h (energy saving mode)

Charging Time

8h(AM1.5,1000W/m2,25)
Material6063 Aluminum,PC
Working Temperature-25~55
Product SizeΦ500*550mm
Packing Size570*570*600mm
Number of Packing1 set/carton
Net Weight7.1KG
Gross Weight8.9KG
Diameter of Mounted Lamppost76mm
Control Mode
Light Control, time control
Package Quantity144 Sets/20'GP, 320 Sets/40'HQ

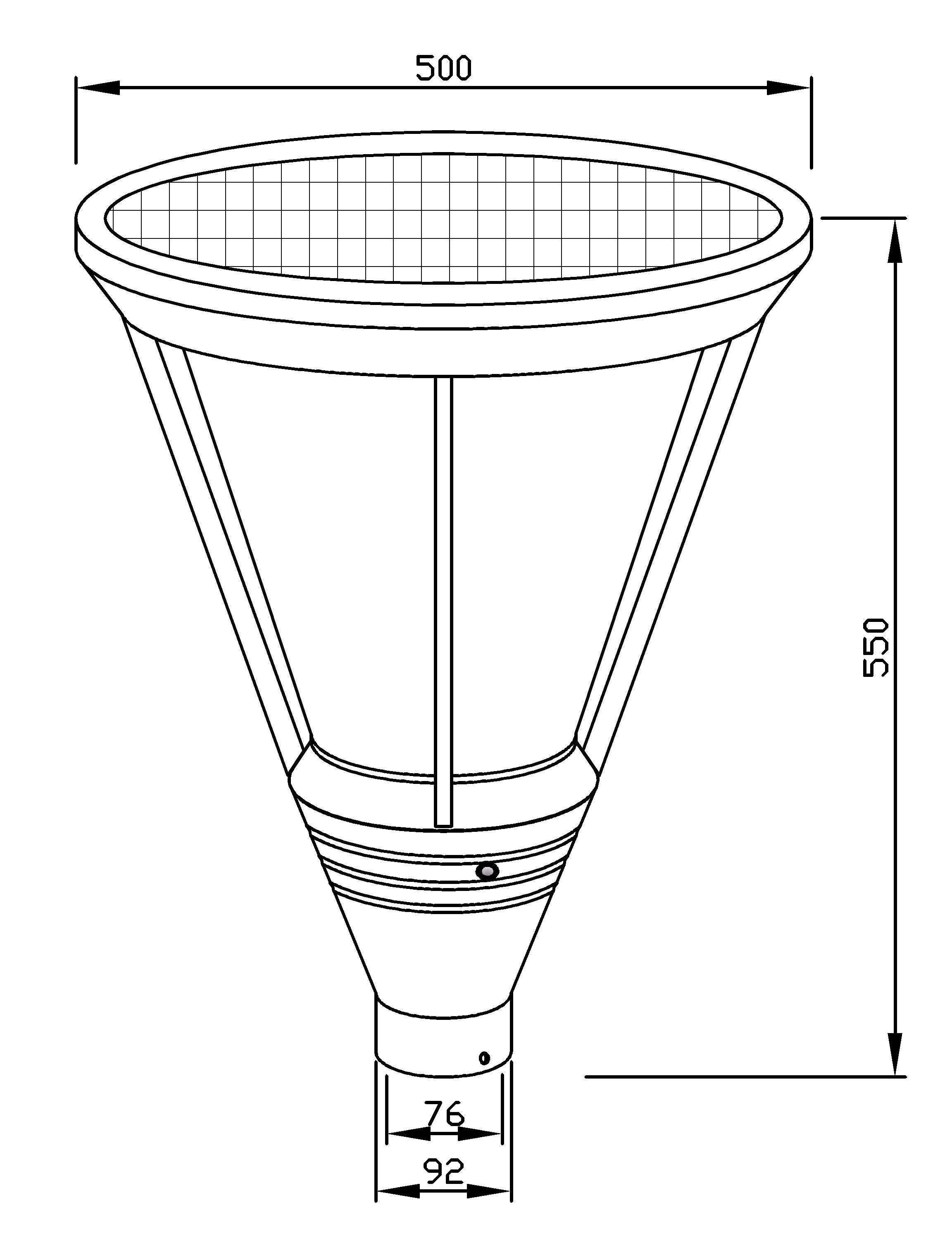

Size Chart

drawing of ms010





Certificates




Application Areas


Solar garden light is widely used in public areas and residential areas as follows


 Road and street

 Office buildings

 Gardens, parks

 Residential areas like villa and appartment or houses.

It can provide the friendly lighting while beautify the environment.






FAQ


1. How many hours can the light work?

Normally, after fully charged, the light can work ≥18h(100% power), in energy saving mode, the light will work 100% in first 3 hours, and rest 11 hours will work in 30% power. The working mode is adjustable.

2. How many rainy days can the light work?

The light can work for 2~3 rainy days.

3. Is the battery replaceable?

Yes. The battery inside is easy to install. Normally, the lifetime of the LiFePO4 lithium battery is 2,000 cycles,≈5 years.

If the battery broken during the warranty period, we will offer you free replacement, and you need to relace the battery under guidance.

4. How does the light work?

The light is fully antuomatic light control. During the daytime, the solar panel will gain the power from the sun and charge the battery, when night comes, the light will automaticlly turn on, the battery inside

will provide the energy to the light.

5. Can we buy samples?

Yes. Please contact with our sales for sample order conditions. We will recommend you the suitable models according to your areas.

6. What's your warranty?

We provide 3 years warranty for compelet set of light. Free replacement will offer during the warranty period.






Our Factory

We own over 4,000 square meters of workshop, in year 2017, we have rebuilt our workshop due to the expansion of production line.

Our factory has  passed the factory inspection by SGS.
