| Solar Panel | 9V/12W Monocrystalline Solar Panel, Grade A |
| LED | 5W, SMD 2835 |
| Battery | 6.4V, 6AH LiFePO4 Lithium Battery |
| Application | Road, Garden, Building, Park, Residential |
Reliable components and practical design provide efficient, low-maintenance lighting for outdoor applications.
As all in one led solar street light manufacturer we use A grade monocrystalline solar cell to gain the max. solar energy. High efficiency solar panel can ensure fast charging.
The all in one led solar street light uses high quality deep cycle LiFePO4 lithium battery with over 2,000 lifecycles inside.
Branded LED chips (Epistar, Cree) privide quality lighting.
Light case adopts die casting aluminum and polycarbonate, spray painting process, anti-corrosion & antioxidant.
PIR Sensor, when people is approaching, the light will turn to 100% power, when nobody detected, the light will work in 30% power.
This all in one led solar street light has a smart controller built in, automatic wake up function, light control and time control.
No trenching, no cabling, easy installation, labor cost saver.
Detailed technical parameters for the solar lawn light.
| Item No. | SL-12 |
| Solar Panel | 9V/12W Monocrystalline Solar Panel, Grade A |
| LED | 5W, SMD 2835 |
| Lifespan Of LED | More Than 50,000 Hours |
| Luminous Flux | 550lm~600lm |
| Color Temperature | 3000K~6000K |
| Beam Angle | 120° |
| Battery | 6.4V, 6AH LiFePO4 Lithium Battery |
| Discharging Time | 3~4 days |
| Charging Time | 3h (AM1.5, 1000W/m2, 25℃) |
| Material | 6063 Aluminum, PC |
| Working Temperature | -25℃~55℃ |
| Diameter of pole | 60mm |
| Mounting Height | 3~4m |
| Mounting Space | 10~15m |
| Packing Size | 505*215*85mm |
| Net Weight | 2.6KG |
| Working Mode | PIR Remote Control |

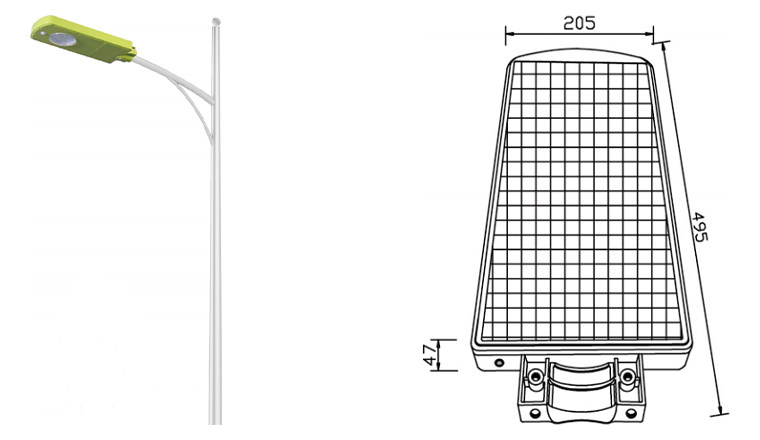

Product dimensions and baseplate information for installation planning.
Supporting certification information for product and market requirements.
Solar street light is widely used in public areas and residential areas as follows
It can provide the friendly lighting while beautify the environment.
Answers to common questions about operation, battery and warranty.
Normally, after fully charged, the light can work ≥18h (100% power). PIR contrlo:100% power when people approaching, 30% power if nobody passes.
The light can work for 2~3 rainy days.
Yes. The battery inside is easy to install. Normally, the lifetime of the LiFePO4 lithium battery is 2,000 cycles, ≈5 years.
If the battery broken during the warranty period, we will offer you free replacement, and you need to relace the battery under guidance.
The light is fully antuomatic light control. During the daytime, the solar panel will gain the power from the sun and charge the battery, when night comes, the light will automaticlly turn on, the battery inside will provide the energy to the light.
Yes. Please contact with our sales for sample order conditions. We will recommend you the suitable models according to your areas.
We provide 3 years warranty for compelet set of light. Free replacement will offer during the warranty period.
